Two engines.
One transaction boundary.

An open-source EV charging management system where Oracle 23ai owns the money path and TimescaleDB owns telemetry — joined by an outbox + relay, with the concurrency re-proven on both engines at every push.

View source on GitHub ARCHITECTURE.md Run it in 3 commands

REST ROUTES · OPENAPI-GATED

PL/SQL PACKAGES

DB ENGINES, ONE STORE PORT

CI JOBS EVERY PUSH

ADRs, TRADE-OFFS NAMED

KNOWN CVES, AUDIT-GATED

01 — SYSTEM SHAPE

One API port. Two storage engines. No brokers.

A modular monolith (ADR-0001): the Express API and the OCPP 1.6J WebSocket gateway share port :4000; a 2-second relay worker moves telemetry from the OLTP engine to the time-series engine. Every simplification is a documented decision, not an omission.

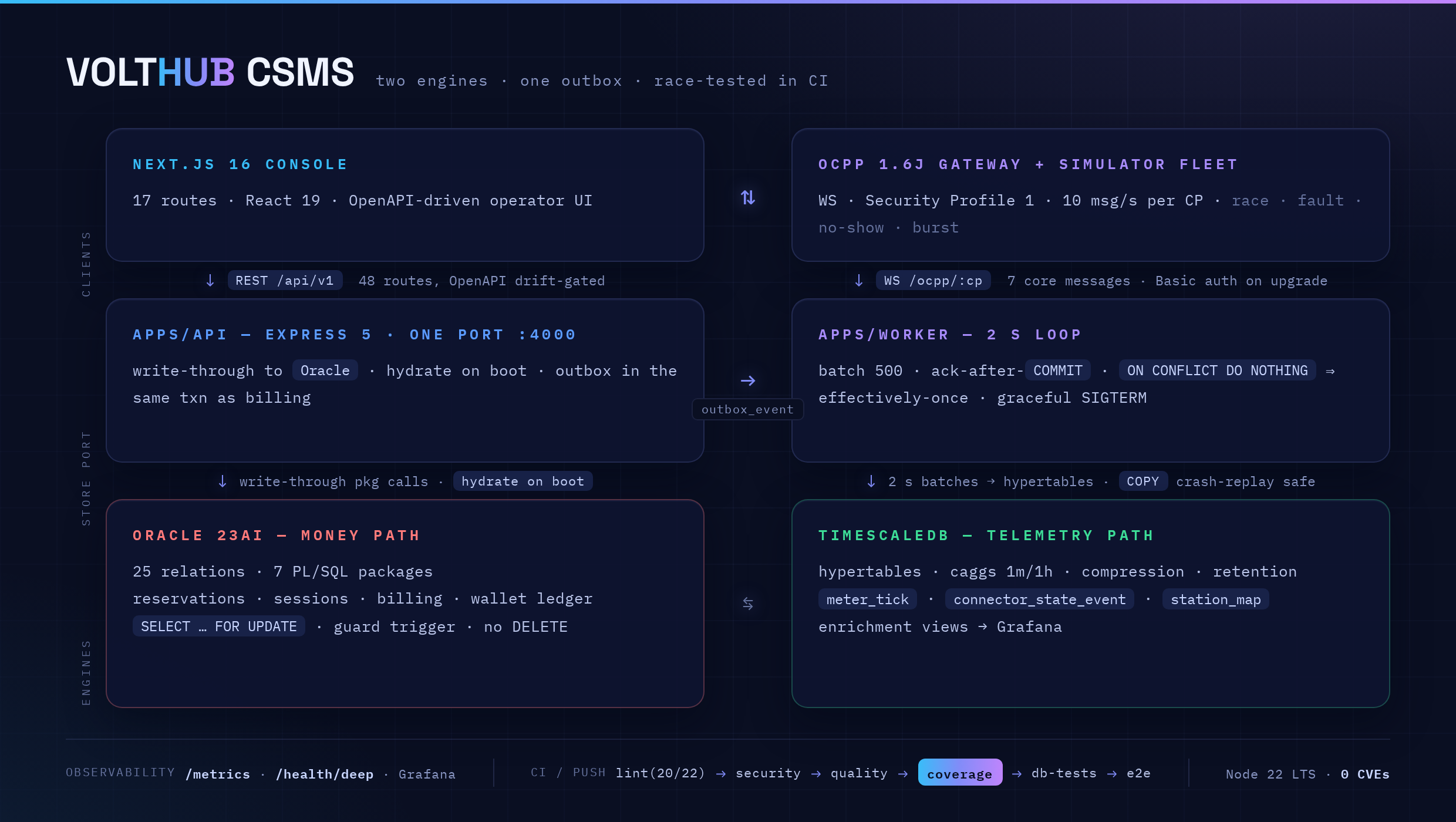

VoltHub CSMS architecture — Oracle money path + TimescaleDB telemetry joined by an outbox relay

SEAM 1

Store port `ADR-0005`

Every route is written against createStore()'s surface. The in-process store is the test double; Oracle wraps the same object with write-through PL/SQL package calls. Routes never know which engine is behind them.

SEAM 2

Outbox + relay `ADR-0003`

meter_reading and outbox_event commit atomically. The relay delivers at-least-once, the sink dedupes — billing never depends on TimescaleDB being up.

SEAM 3

Error-band contract

ORA-20501…209xx maps to HTTP 422/409/402 exactly once, in src/errors.js. The same bands are raised by RAISE_APPLICATION_ERROR in PL/SQL and mirrored in JS.

02 — THE PROOF

Claims are cheap. CI replays the race on every push.

The 30-second demo that sells the whole design: two clients reserve the same connector in the same window. Exactly one wins — proven against the in-process store and real Oracle row locks, in CI, on both engines.

sim — double-reserve race, then a live session

$ simulator --scenario race

POST /api/v1/reservations 201 BOOKED

POST /api/v1/reservations 409 OVERLAP

StatusNotification → OCCUPYING

MeterValues → kWh · kW · ₹ live

POST /invoices/:id/pay 200 SUCCESS

→

Concurrency is asserted, not claimed. Parallel double-reserves and double-pays fire in CI; the suite fails unless exactly one wins. Source: apps/api/test/race.js

→

Money logic lives in PL/SQL, not app code. Seven packages own the writes; a guard trigger blocks direct connector.status UPDATEs. No DELETE grant exists anywhere.

→

Every claim has a receipt. docs/verification.md names what actually ran for each statement in the README — including what was measured and how.

→

Performance numbers stay out of prose. docs/perf.md carries the methodology + 5 reproducible experiments; tables only land from bench/ scripts.

03 — THE TWO ENGINES

Right engine for the right shape of data.

Sessions and billing are ACID-relational. Meter ticks are immutable, time-ordered, and read as window aggregates — the wrong shape for a row-store. Each engine gets what it is good at; the store port keeps them swappable.

MONEY PATH · OLTP

Oracle 23ai

BCNF-honest schema · PL/SQL owns the writes

29-relation schema, 7 PL/SQL packages — reservation, session, billing, tariff, maintenance, audit, seed
Overlap exclusion via row locks; error bands map to HTTP exactly once
Least-privilege app role — no DELETE grant anywhere in the system
Guard trigger blocks direct status UPDATEs around the state machine
Runs as a CI service container on every push

OUTBOX
+ RELAY
2s · idempotent

TELEMETRY PATH · TIME-SERIES

TimescaleDB

Hypertables · continuous aggregates · compression

90%+ of rows are immutable meter ticks — append-heavy, window-read
1m/1h continuous aggregates; 7-day compression, 90-day retention
Relay inserts with ON CONFLICT DO NOTHING — crash replays are safe
Grafana reads caggs directly for the load dashboard

04 — STACK, WITH THE TRADE-OFFS

Choices with reasons, not fashion.

The short version of the trade-off table — the full one, with the accepted costs, lives in the README.

Oracle 23ai	Row-lock semantics + PL/SQL packages own the money-path writes. Trade-off: a real Oracle dependency — so CI runs it as a service container every push.
TimescaleDB	Hypertables / caggs / compression are the right shape for immutable ticks. Trade-off: caggs query one hypertable — enrichment happens in query-time views + a relay-maintained station_map.
Outbox + relay	Same-transaction publication, ack-after-COMMIT relay, idempotent replay. Trade-off: single-writer worker, not a fan-out bus.
Express 5 + pino 10	Boring, dependency-light API core; request-ID error envelopes; drift-gated OpenAPI. Trade-off: hand-rolled middlewares instead of a framework galaxy.
Next.js 16 + React 19	App Router with real client components; CSP at the Next layer; zero chart dependencies. Trade-off: server/client boundary discipline is on the team.
Compose + Caddy	One honest VM deploy target with graceful SIGTERM draining. Trade-off: no Kubernetes story — by design, see ADR-0001.

05 — REAL PIXELS

From the running stack, not a mockup tool.

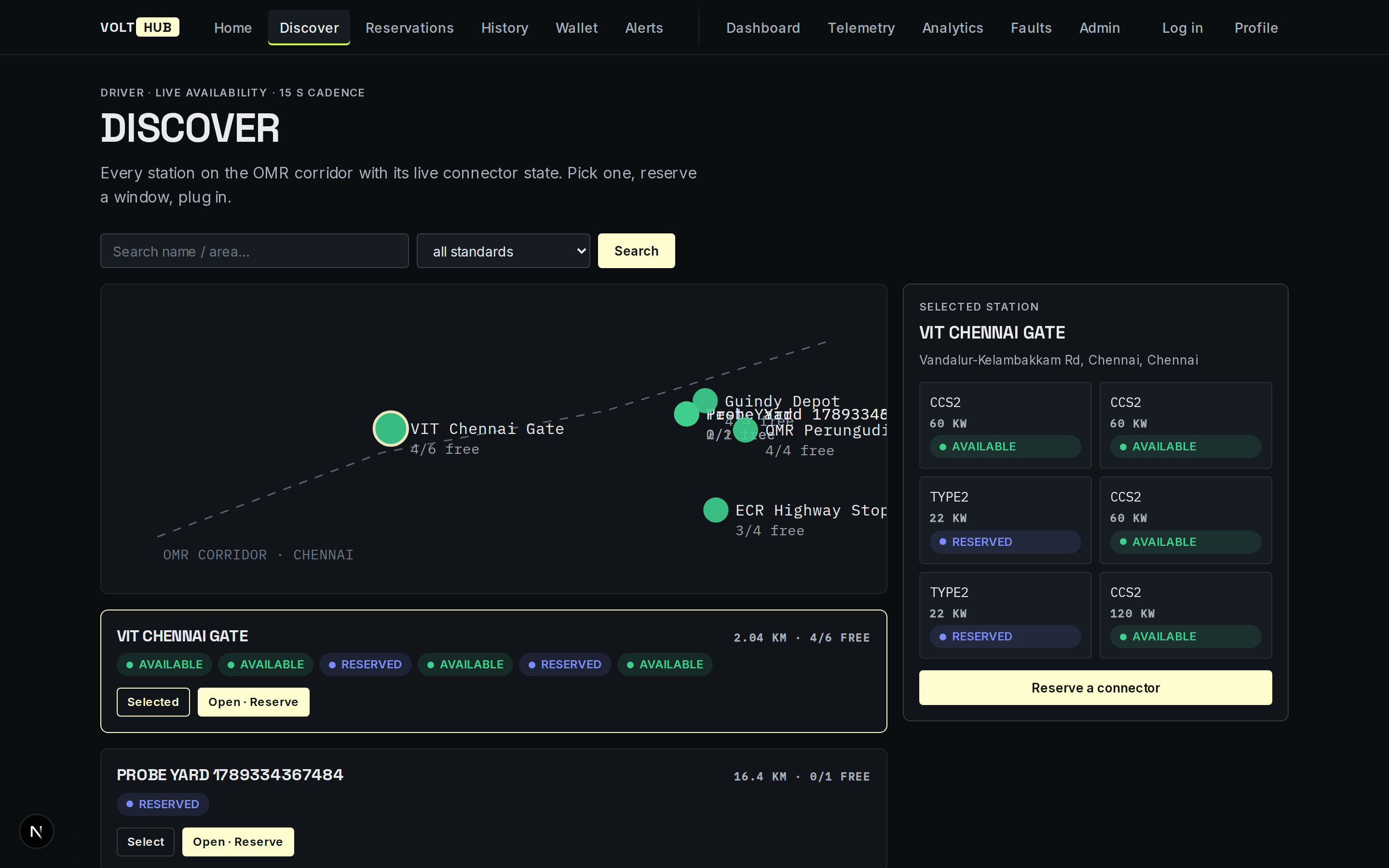

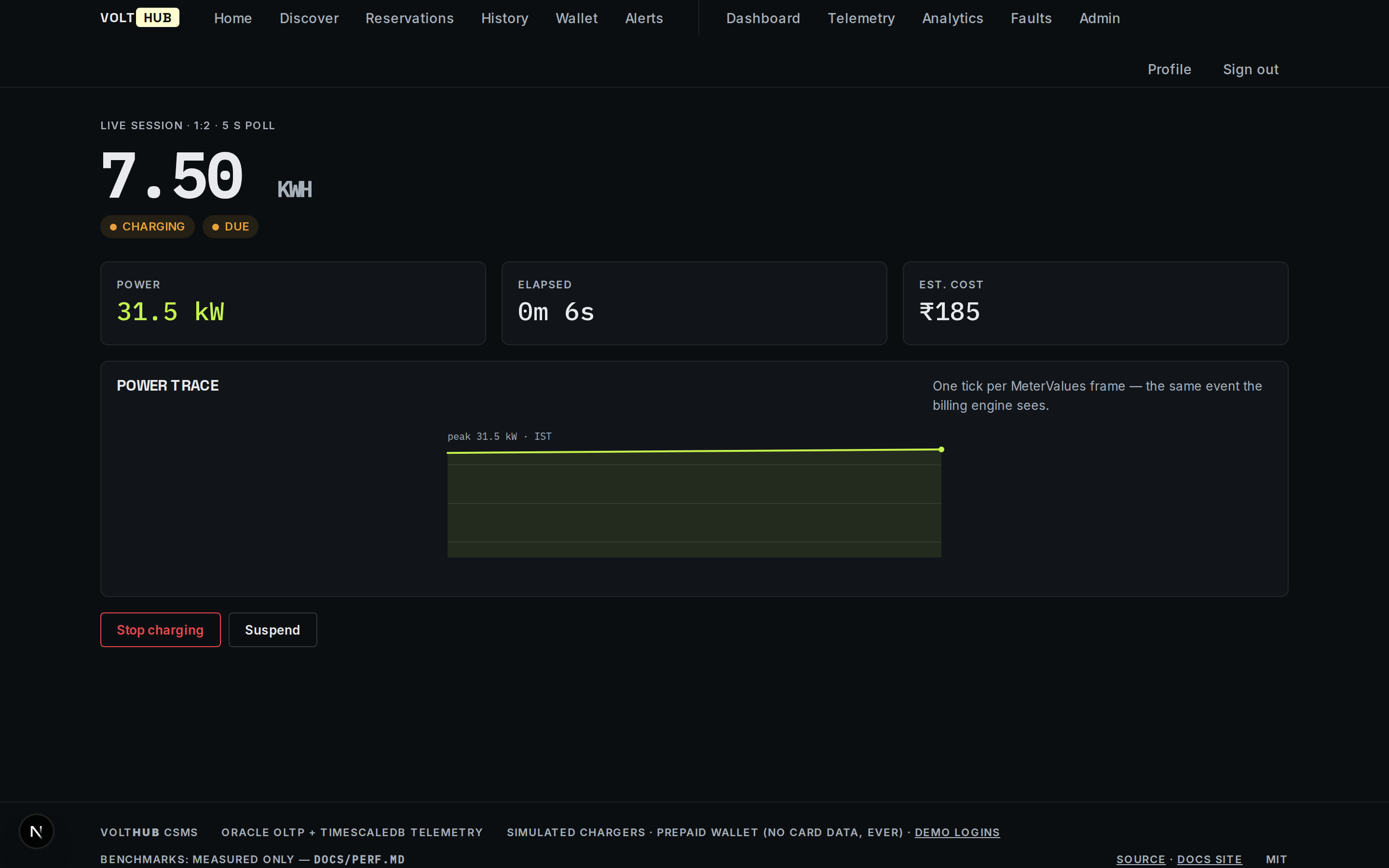

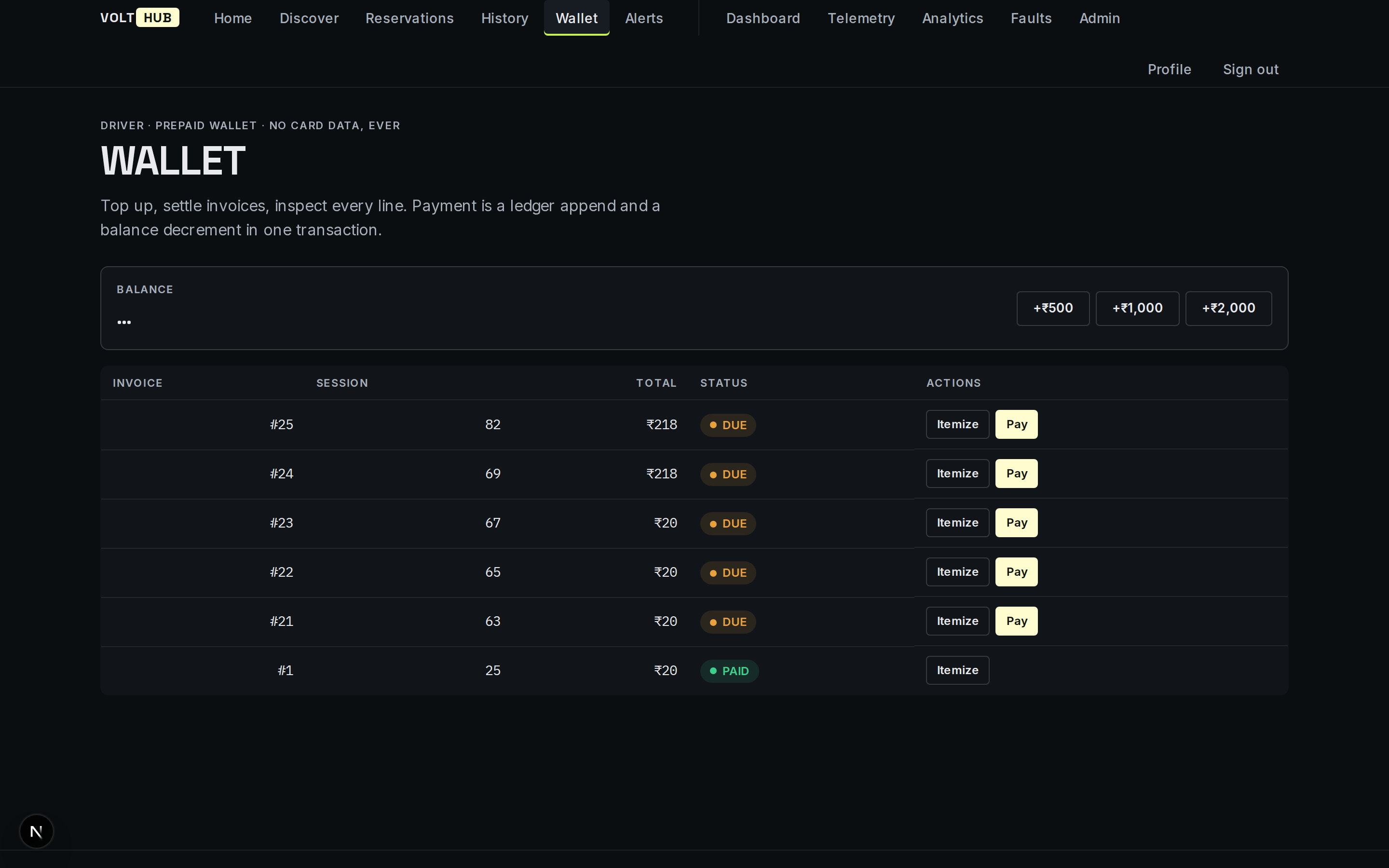

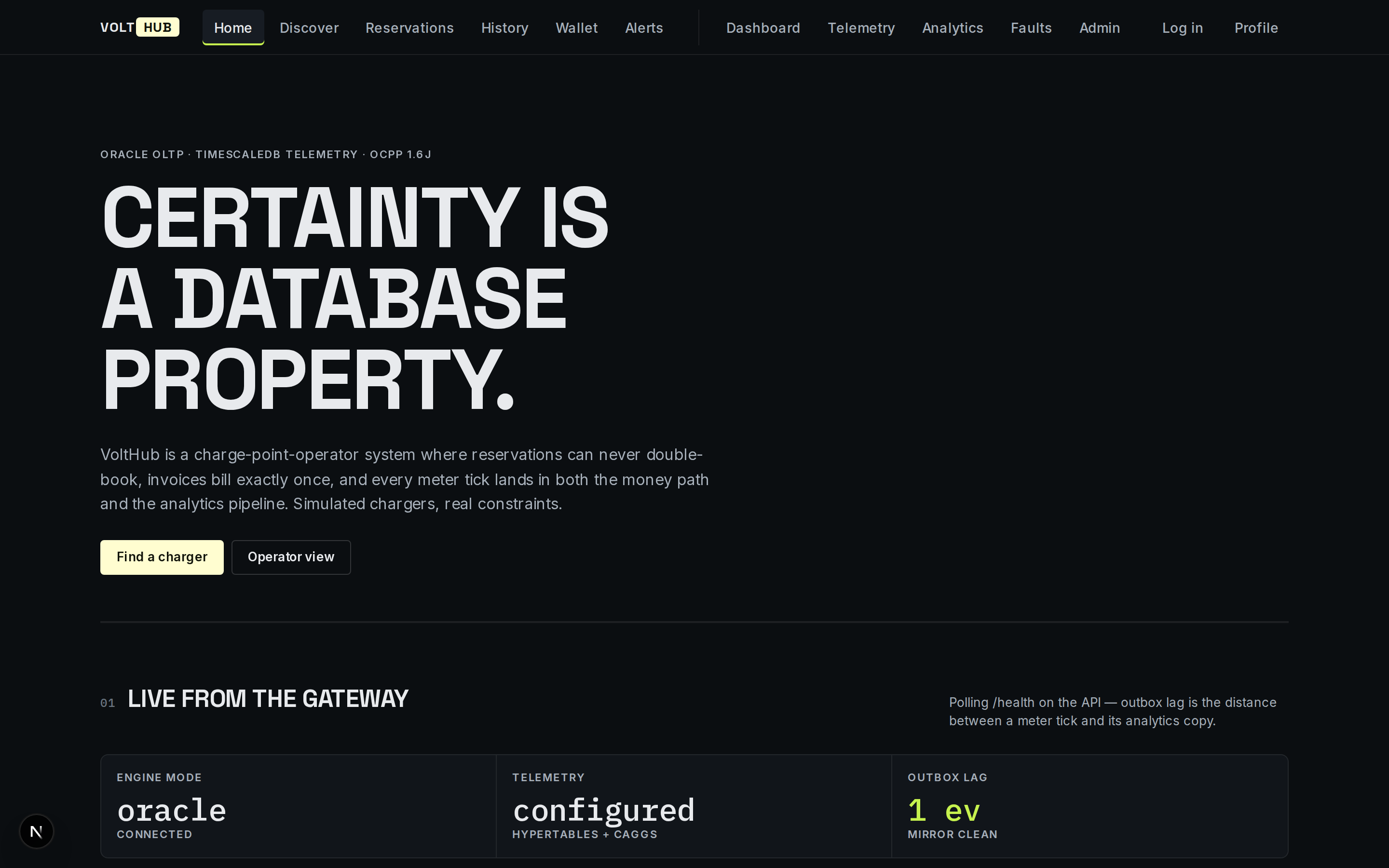

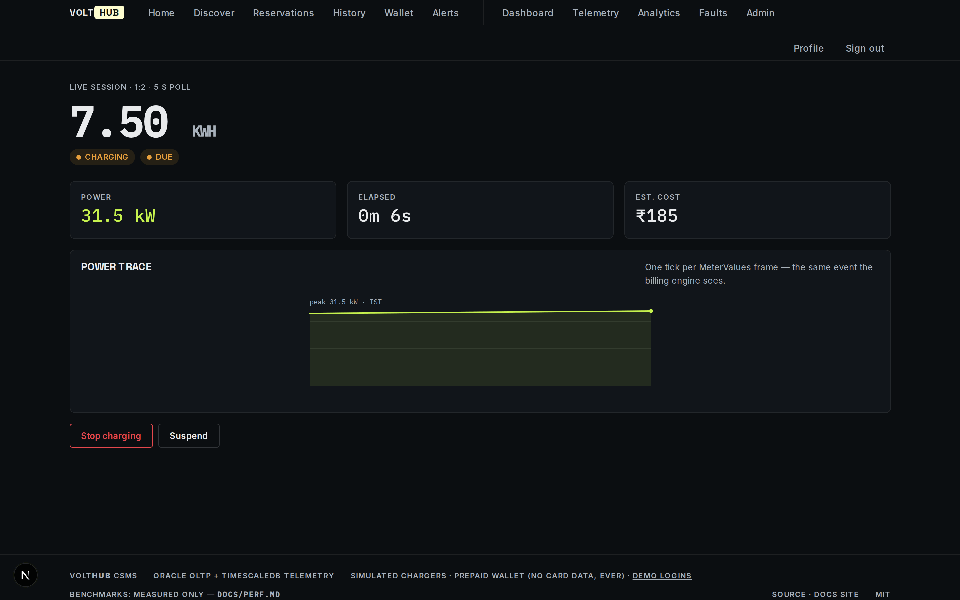

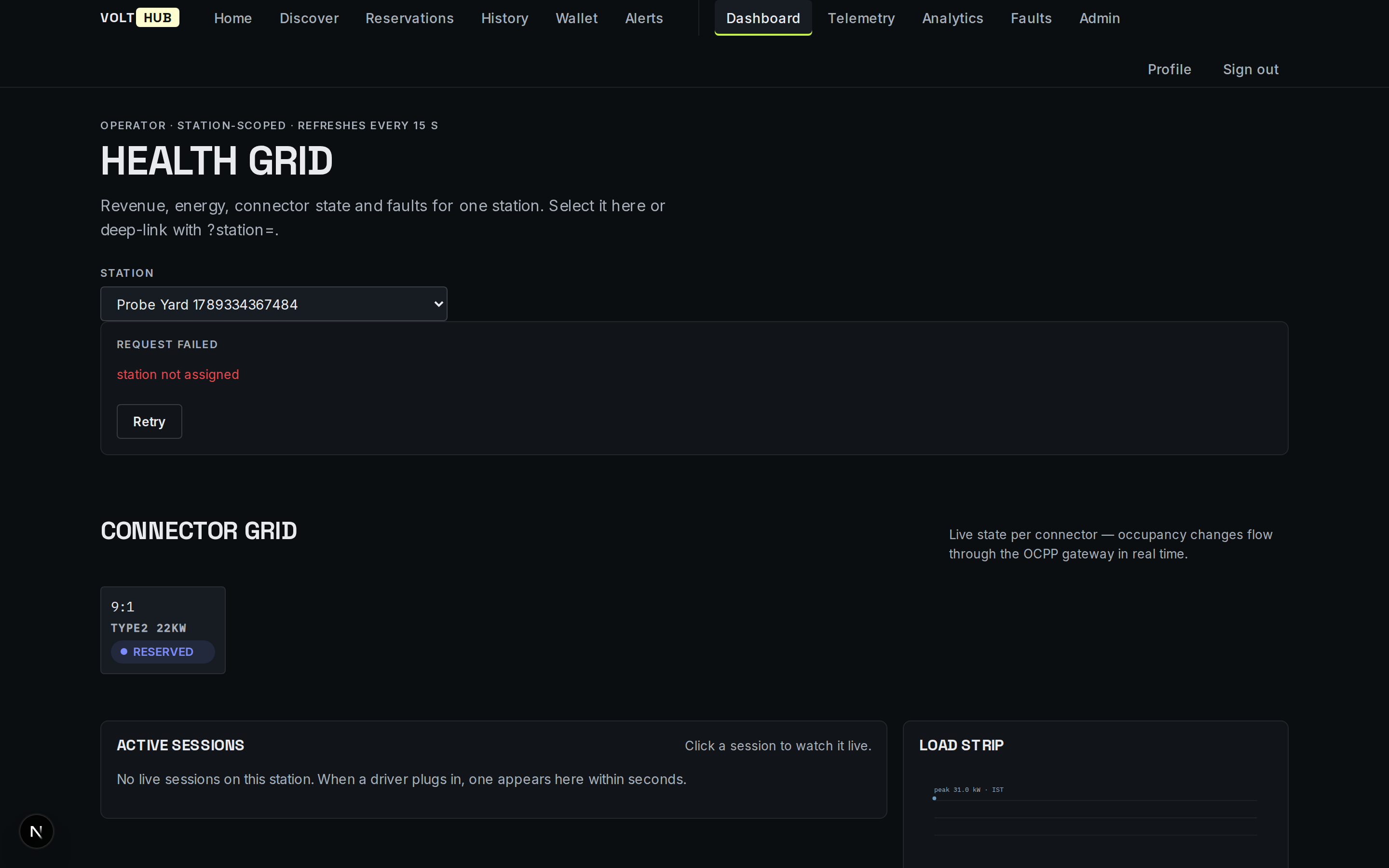

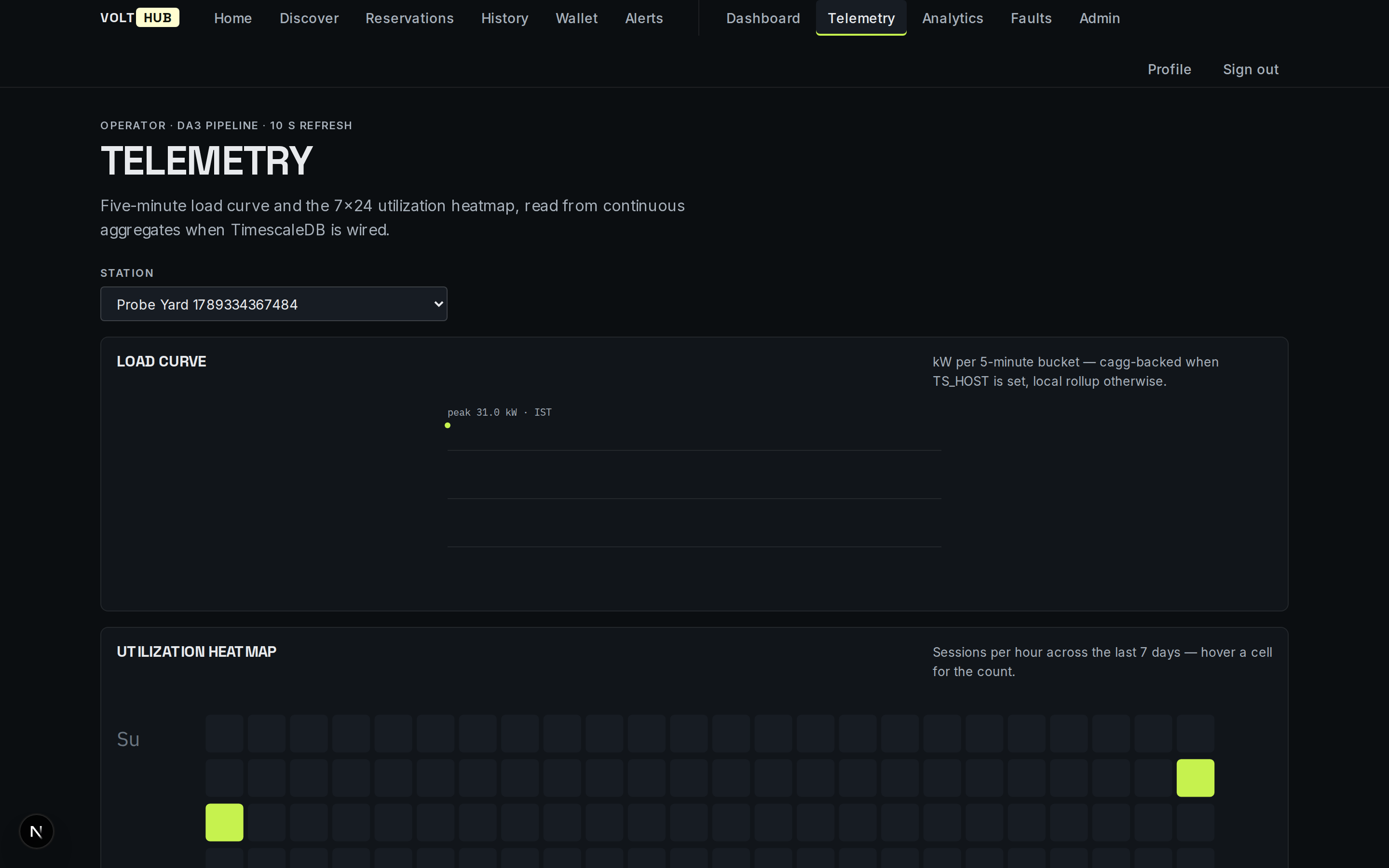

API on :4000, an OCPP 1.6J WebSocket session, and the Next.js operations console in "Grid Current". The GIF is re-recordable in one command from scripts/screenshots/.
